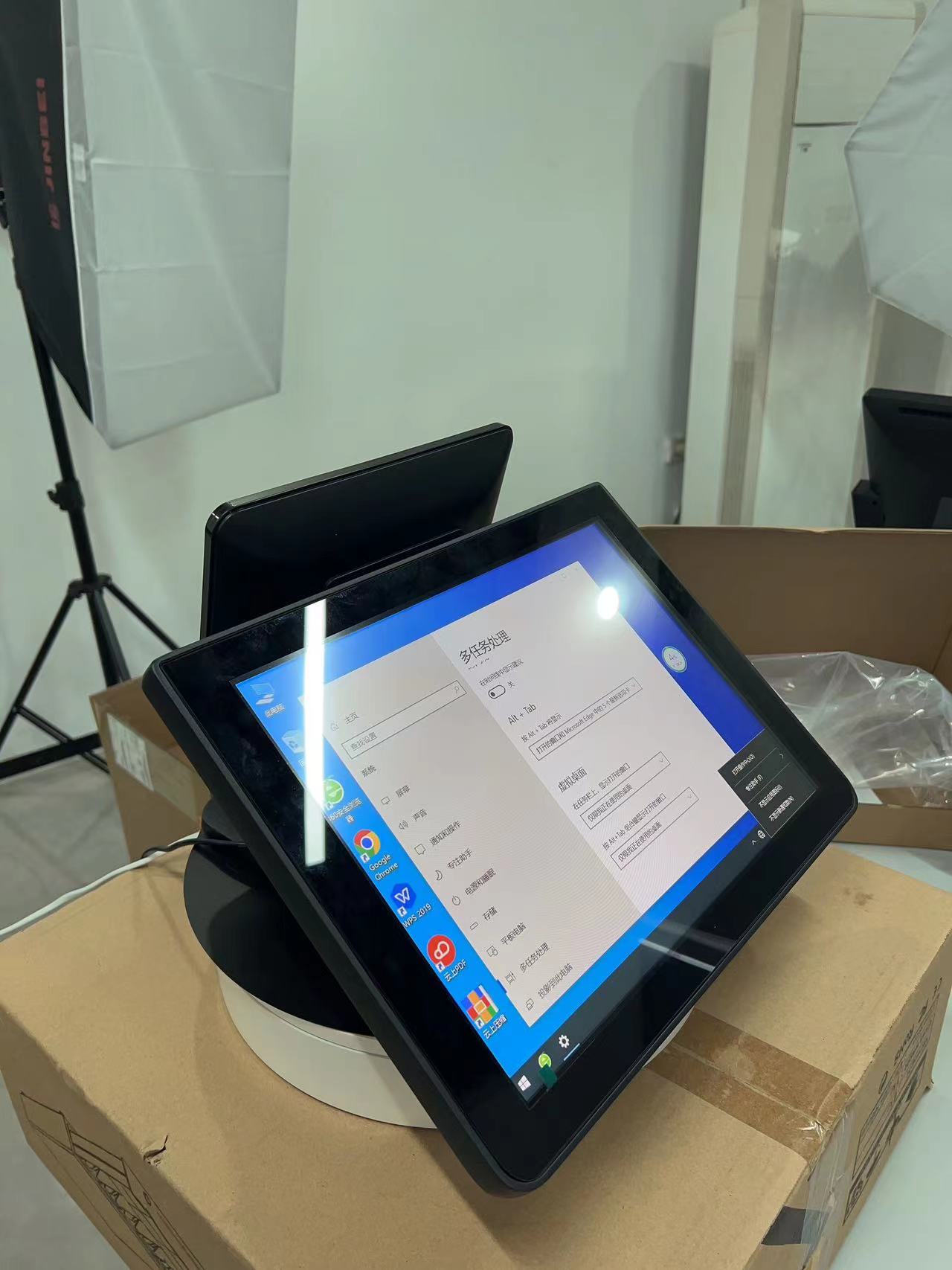

WP1500-I POS Machine
15”Main Touchscreen+9.7” TFT Second Display + COMBO READER(MSR+RFID READER)
- Intel® Celeron® J6412 ,Quad Core(Up to 2.6GHz)
- Kingston 16GB Standard, DDR4 3200 MT/s,
- Kingston M.2 SATA2280,128GB,
- Windows 10 (Unactivated)
Features
Introducing the all-new high-end POS WP serials that entirely refined point of sale system. The WP1500 adapts simplified and modernized design with 15” touchscreen. WP1500-I will elevate the style of the place where it is installed.
-
- Intel Celeron J6412
- Mainboard: JWIPC
- RAM: Kingston
- SSD: Kingston
- Body: Whole Aluminum-Casting
- Stand: Metal+ Hard ABS
- Fanless System
- Main Display: BOE Brand,15 Inch PCBA touch, 1024*768 pixels
- Second Display: Hannstar Brand, 9.7 Inch TFT,1024*768 pixels
- Peripherals: Combo Reader MSR+RFID
Specification
- 15” TFT LCD PCAP Touchscreen POS Terminal
- 7”TFT Second display,Touch Panel Optional
- Compact in size yet powerful in performance. Powered By Intel® Celeron®High-performance Processors
- Jam-packed Aluminum Die-casting Heavy Duty Design
- Elegant & Robust, Dual Hinge(Full Aluminum die-casting)
- Improved Product Reliability, With High-qualified Circuit Elements
- Splash-proof Protection(Front),Spill and Dust Resistant
- Complete FAN Free System, Innovative Heat Pipe Design (Fanless)
- Adjustable Height& Viewing Angle
- Contemporary and Modern Styling
- With Modular Design Combo Reader MSR Plus RFID Reader
- Multiple I/O Interfaces for Peripherals
- Flexible Deployment on a Counter or a Wall
- Fast Installation and Easy Service Ability
E-Brochure
|
System |
Processors | Intel® Celeron® J6412 ,Quad Core (Up to 2.6GHz) | |
| Chipset | J6412 | ||
| Memory | Kingston: 8GB Standard, DDR4 3200 MT/s, Socket 1 x SODIMM (Max to 16GB) | ||
| Storage | Kingston: M.2 SATA2280 3.15INCH (500Mb/s) SSD 128GB | ||
| Operating Systems | Windows 10 | ||
| Speaker | 8Ω5W | ||
| Display | Type | 15″ TFT(LVDS) LCD, LED Backlight | 9.7” TFT Second Display |
| Resolution | 1024 x 768 Pixels (4:3) | 1024*768 Pixels(4:3) | |
| Brightness | 220 cd/m² (typ.) | 350 cd/m² (typ.) | |
| Touchscreen | Projected Capacitive Touch | Optional | |
| Interface | USB | -4xUSB 3.0 | |
| Serial | -1xCOM (DB9) | ||
| VGA | -1 VGA | ||
| LAN | -1 x 10/100/1000Mbps Ethernet, RJ-45 | ||
| Audio | – 1 x 3.5mm LINE OUT
-1 x 3.5mm MIC IN |
||
| Power DC-IN | – 1 x DCIN: DC JACK 12V/24V Compatible | ||
| Power | Power Supply | Adapter 12V, 5A (DC JACK) | |
| Materials | Display Case | Main display: Aluminum CAST; 2nd display: ABS | |
| Stand | Foldable Aluminum Stand | ||
| Physical & Environmental | Operating Temperature | -5°C ~ 50°C at 10% to 90% Humidity | |
| Storage Temperature | -20 °C ~ 70 °C at 5% to 90% Humidity | ||
| Dimensions (W x H x D)MM | |||
| Packing Dimensions (W x H x D) MM | |||
| Net Weight | |||
| Packing Weight | |||
| Certification | N/A | ||
| Color | Black | ||
| Options & Peripherals | 2nd Displays | 15 Inch LCD display; Optional touchscreen | |
| I/O Expansion | USB,COM | ||
| Storage | 256GB,512GB,ITB | ||
| Combo Reader | MSR: Comply with ISO 7811, Support 1 & 2 & 3 Track
RFID:13.56 MHZ RFID reader and writer or only reading version |
||
| Wall Mount Kit | VESA-Compatible, 75 x 75(mm), 100 x 100 (mm) | ||
| Stand | Whole Aluminum Stand or Aluminum plus ABS Stand | ||
| Bluetooth | BT 4.2 On-Board (Factory Option) | ||
| WIFI |
2.4G WIFI OR 2.4G&5G dual frequency WIFI, On-Board (Factory Option) |
||
