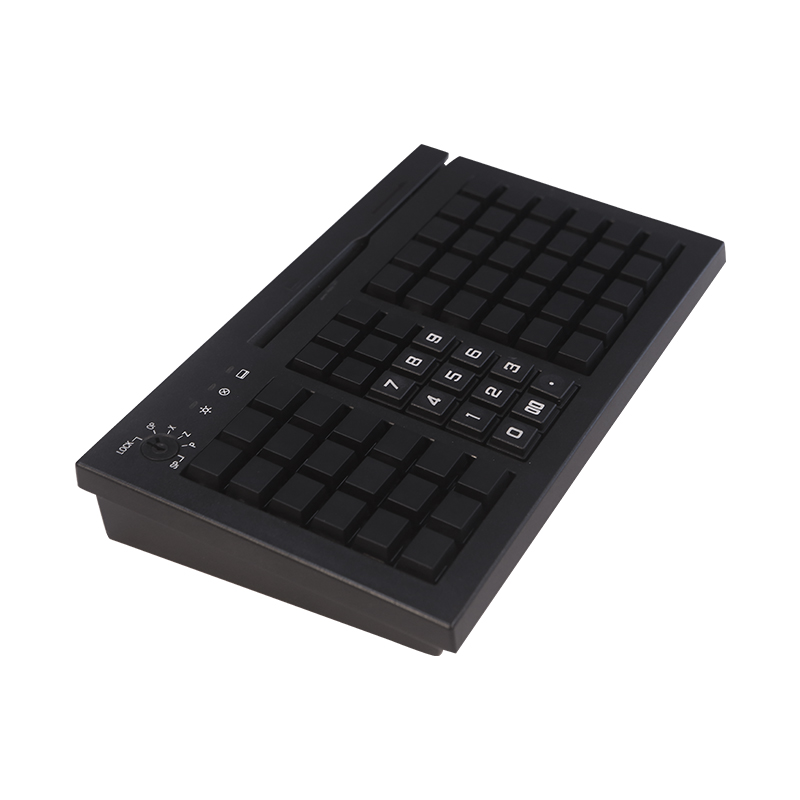

MKB66A Cherry Keyboard
- 66 fully programmable keys, 6*13 matrix
- With optional dam-board, location is customized
- All keys are made from Cherry MX key switches, good tactile feelings
- Magstripe reader settings are programmable by Matrix Maker
- Programmable functions are powered by the Matrix Maker
- MSR device that reads quickly and accurately
- Support OPOS, JPOS for option
- Provide basic uni-mapper’s software
- With internal strong metal plate to enhance the protection against ESD is increased
- Different keycaps (1 fold, 2 fold and 4 fold) are available
- Numeric profile keycaps are available
- Detachable cable, using the tough RJ45 connector
- Available in USB and PS/2 interface
- Manufacture by our own technology, “Made in China”
Features
- Reliable solution that can work 24/7,
- Low initial and further operating costs,
- Saving work space,
- A universal keyboard designed to perform a wide range of cash transactions,
- Universal USB or PS/2 cable for connecting to a computer – no need to buy an additional cable,
- Compatibility with most modern OS, such as WinXP/7/POSReady2009/7, DOS, Linux and others, as well as popular cash register software,
- Modern user-friendly interface software for keyboard programming and magnetic card reader settings,
- Reliable key travel mechanism, long durability,
- With internal strong metal plate to enhance the protection against ESD is increased,
- The ability to connect a service Windows keyboard if you need to quickly configure it.
Specification
| Programmable Features |
| Powered by Matrix Maker, our programmable software running under Win7, Win8, Win10 and Win11 |
| With optional Android based programming app |
| Support OPOS, JavaPOS |
| All keys can be programmed with unlimited characters |
| All data can be retained for no less than 100 years without additional battery |
| Does not require a TSR program and hence avoids application software crashes |
| Supports multi-layer programming |
| Provides for a variable time delay of up to 255 seconds in each programmed string |
| Provides true keyboard wedge function that operates with or without the normal computer keyboard connected |
| Provide a true Caps/Scroll/Numeric Lock function independent of any other keyboards being connected |
| MagStripe Card Reader Features |
| Comply with ISO 7812, IBM standards, AAMVA, JIS-2 |
| Support multi-country code settings |
| Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence |
| Track 1: 210BPI with max 76 characters |
| Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters |
| Track 3: 210BPI with max 107 characters |
| Card swipe speed: 10 to 100 cm/s; Speed:3-125 ips at 75 BPI; 3-50 ips at 210 BPI |
| 500,000 swipe cycles |
| Keylock Features |
| 6 steps keylock |
| Each step can be programmed as a normal key or layer key |
| Life cycle >= 25,000 times |
| With clear step rotation |
| Technical Data |
| [Electronics] |
| Power supply: DC+5V ±10% |
| Current input: <150mA |
| [Mechanical] |
| Total travel: 4 – 0.4mm |
| Pre-travel: 2 ± 0.6mm |
| Peak load before make: 60 ± 20cN |
| [Others] |
| Storage temperature: -40°C to +55°C |
| Operating temperature: 0°C to +40°C |
| Operating humidity: 40% to 90% |
| Certificates: FCC/CE |
E-Brochure
| Number of keys | 66 keys | |
| Dam-board | Location is optional | |
| Color | Black & Grey White | |
| Dimensions | Keyboard | 290mm(L) x 173.5mm(W) x 45mm(H) |
| Inner Box | 385mm(L) x 220mm(W) x 60mm(H) | |
| Out Carton | 403mm(L) x 338mm(W) x 465mm(H)/10PCS/13.5KG | |
| Unit Weight | 1.0 kg | |
| Key switch mechanism | Mechanical Cherry MX keyboard | |
| Keystroke resource | 50 million clicks | |
| Key stroke height | 4mm±0.5mm | |
| Programmable keys | 66 keys | |
| Relabeled keys | 66 keys | |
| Number Keys Area | Yes, Normal Programmable Keycap | |
| Magstripe Card Reader | 1/2/3 tracks; Optional ; ≥50 0000 times swipe cycles | |
| Multilevel programming | Support 15 layers of programming | |
| Electronic lock | 6 position lock | |
| Interface | USB, PS/2 | |
| Accessories |
USB or PS/2 cable1’; Keycaps & lens 1 Box ( 54 single lens, 5 sets 1*2 fold keycaps & lens, 1set 2*2 fold keycaps &lens;) key click 1’; Keys 1 set (4pcs for different managing level) |
|
| Cable Length | 1.8M for USB; 2.5M for PS/2 | |

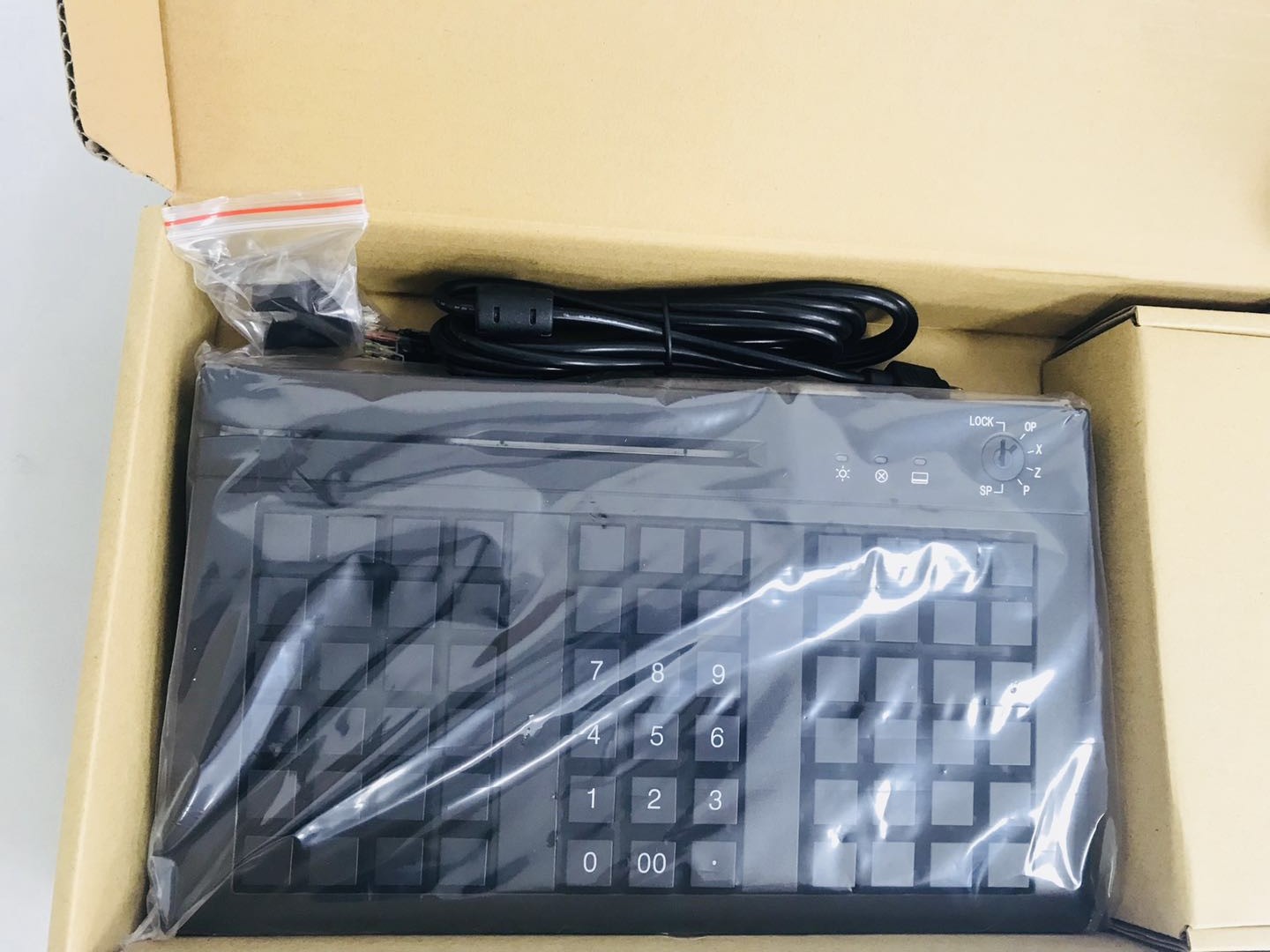

| Packing | PP Bag+ Foam Cushion +Keycaps &lens Small box + Inner Box | |
