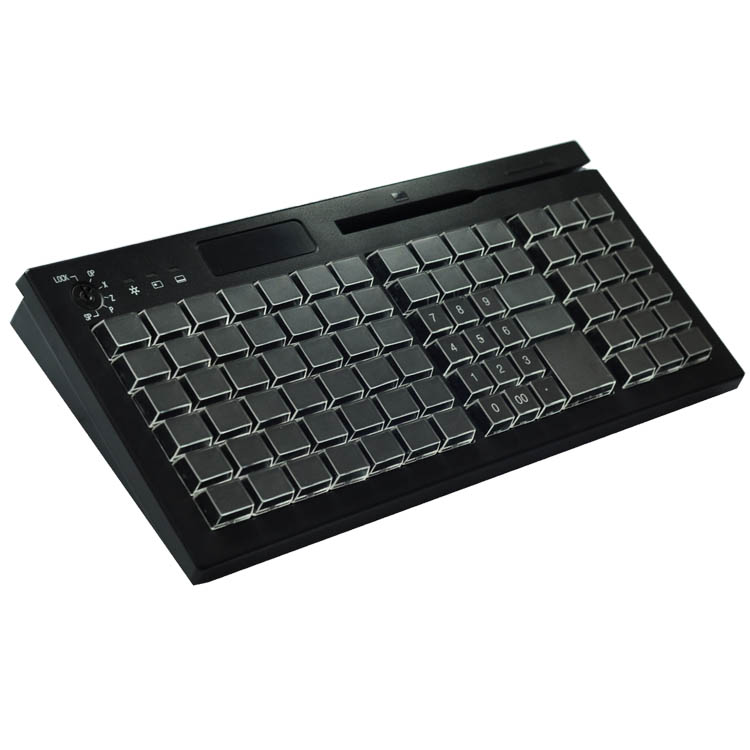

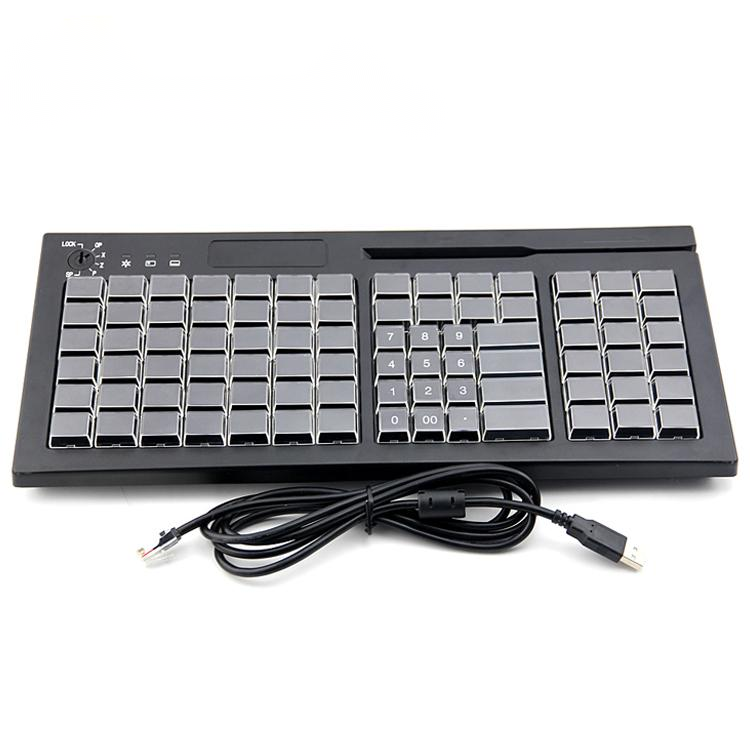

KB84M Keyboard
- POS keyboard 84programmable keys

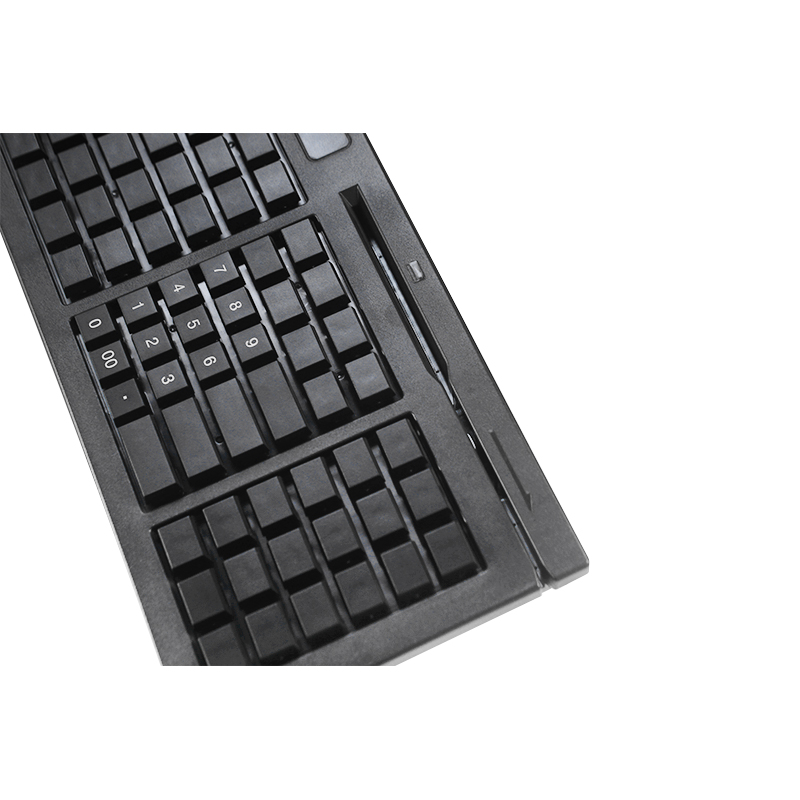

- 84 fully programmable keys, 6*14 matrix with numeric zone
- 1.33 times bigger keys , More convenient to cashier
- All keys are made from membrane with Independent push rod structure, good tactile feelings
- MSR device that reads quickly and accurately
- Provide basic uni-mapper’s software
- Magstripe reader settings are programmable by Matrix Maker
- Programmable functions are powered by the Matrix Maker
- Support OPOS, JPOS for option
- With internal strong metal plate to enhance the protection against ESD is increased

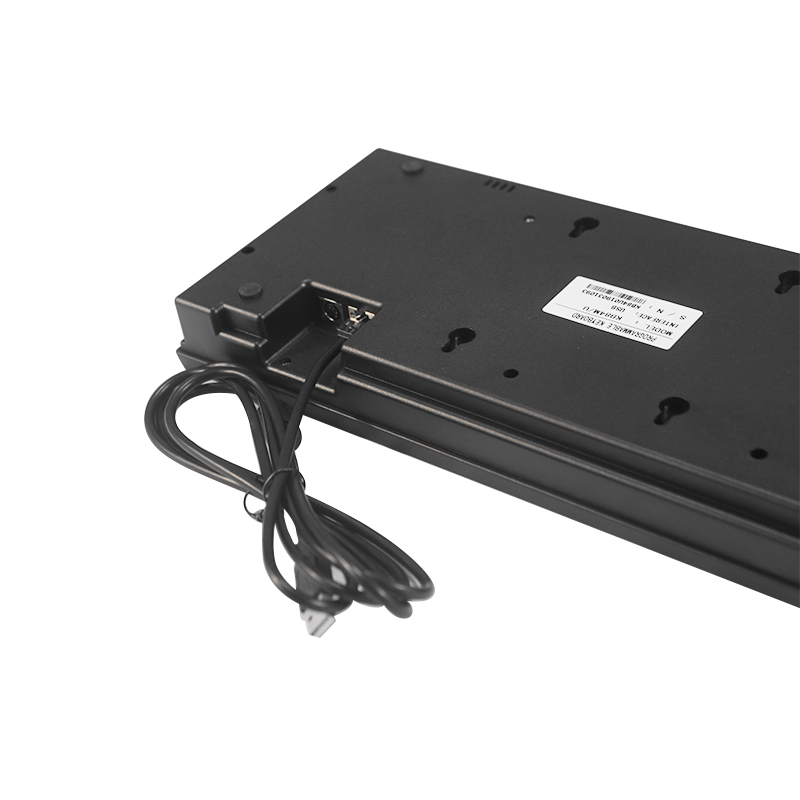

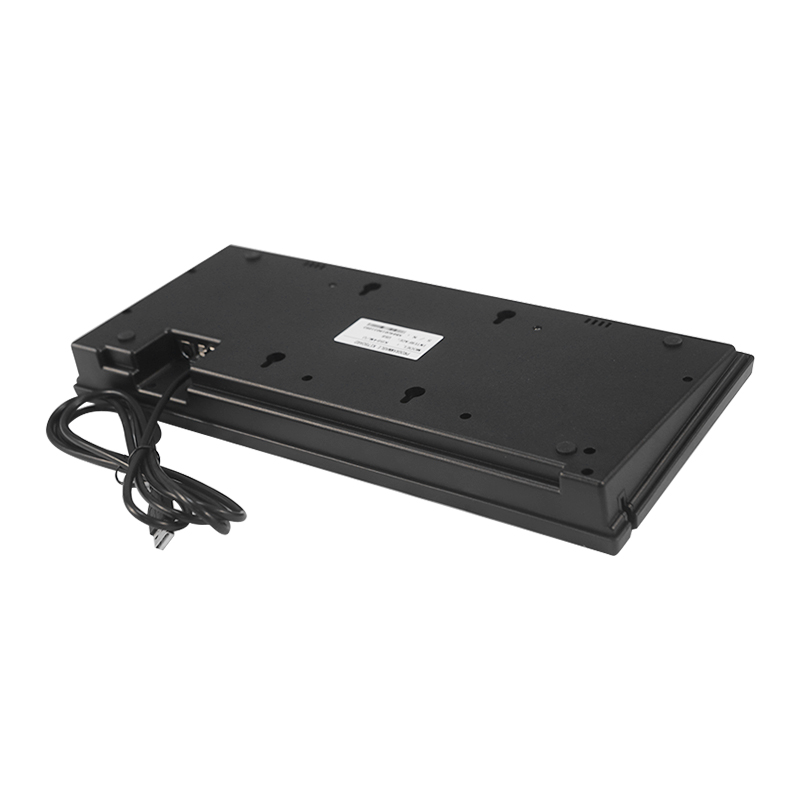

- Detachable cable, using the tough RJ45 connector
- Available in USB and PS/2 interface
- Manufacture by our own technology, “Made in China”
Features
- Reliable solution that can work 24/7,
- Low initial and further operating costs,
- Saving work space,
- A universal keyboard designed to perform a wide range of cash transactions,
- Universal USB+PS/2 cable for connecting to a computer – no need to buy an additional cable,
- Compatibility with most modern OS, such as WinXP/7/POSReady2009/7, DOS, Linux and others, as well as popular cash register software,
- Modern user-friendly interface software for keyboard programming and magnetic card reader settings,
- Reliable key travel mechanism, long durability,

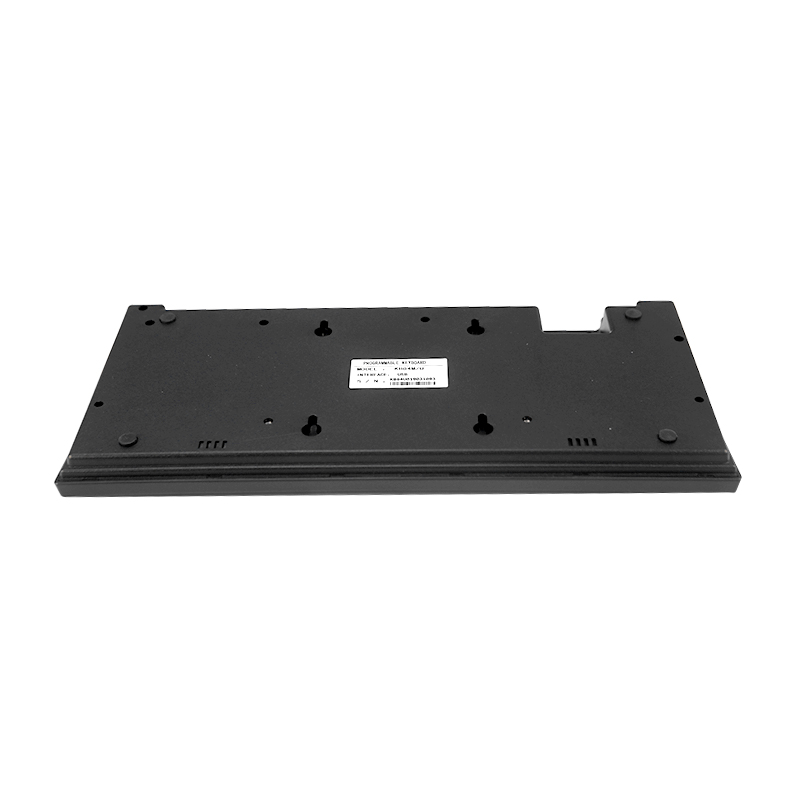

- Protection against static electricity due to the presence of a metal plate built into the base,
- The ability to connect a service Windows keyboard if you need to quickly configure it.
Specification
|
Programmable Features |
|
Powered by Matrix Maker, our programmable software running under Win7, Win8, Win10 and Win11 |
|
With optional Android based programming app |
|
Support OPOS, JavaPOS |
|
All keys can be programmed with unlimited characters |
|
All data can be retained for no less than 100 years without additional battery |
|
Does not require a TSR program and hence avoids application software crashes |
|
Supports multi-layer programming |
|
Provides for a variable time delay of up to 255 seconds in each programmed string |
|
Provides true keyboard wedge function that operates with or without the normal computer keyboard connected |
|
Provide a true Caps/Scroll/Numeric Lock function independent of any other keyboards being connected |
|
MagStripe Card Reader Features |
|
Comply with ISO 7812, IBM standards, AAMVA, JIS-2 |
|
Support multi-country code settings |
|
Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence |
|
Track 1: 210BPI with max 76 characters |
|
Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters |
|
Track 3: 210BPI with max 107 characters |
|
Card swipe speed: 10 to 100 cm/s; Speed:3-125 ips at 75 BPI; 3-50 ips at 210 BPI |
|
500,000 swipe cycles |
|
Keylock Features |
|
6 steps keylock |
|
Each step can be programmed as a normal key or layer key |
|
Life cycle >= 25,000 times |
|
With clear step rotation |
|
Technical Data |
|
[Electronics] |
|
Power supply: DC+5V ±10% |
|
Current input: <150mA |
|
[Mechanical] |
|
Total travel: 4 – 0.4mm |
|
Pre-travel: 2 ± 0.6mm |
|
Peak load before make: 60 ± 20cN |
|
[Others] |
|
Storage temperature: -40°C to +55°C |
|
Operating temperature: 0°C to +40°C |
|
Operating humidity: 40% to 90% |
|
Certificates: FCC/CE |
E-Brochure
| MSR | |||
| Track Position | Track1/2/3 | Life of Head | 500,000 card swipes |
| Card swipe speed | 5~120cm/s | Environmental | Operating Temperature : 0~50 degree C |
| Controller | |||
| Interface | PS/2, USB | Key Switch | Membrane Type |
| Power Supply | DC 5Volt, Max 75mA | Key Code | Download from our website (Provide uni mapper) |
| Mechanical | |||
| Size | 388(L)X170(W)X47(H)mm | Key Life Span | 10 million times |
| Total Travel | 4.0±0.5mm | Key Layout | 84Key |
| Peak Force | 55±10g | ||
|
Number of keys |
84 keys | |
| Color |
Black |
|
|
Dimensions |
Keyboard | 388mm(L) x 170mm(W) x 47mm(H) |
| Inner Box |
425mm(L) x 226mm(W) x 62mm(H) |
|
| Out Carton |
470mm(L) x 325mm(W) x 450mm(H)/10PCS/15KG |
|
|
Unit Weight |
1005/1250g(with accessories) | |
| Key switch mechanism |
Membrane Switch |
|
|
Keystroke resource |
10 million clicks | |
| Key stroke height |
4mm±0.5mm |
|
|
Programmable keys |
84keys | |
| Relabeled keys |
84 keys |
|
| Number Keys Area | Yes, 1*1 fold key | |
|
Magstripe Card Reader |
1/2/3 tracks; Optional ; ≥50 0000 times swipe cycles | |
| Multilevel programming |
Support 15 layers of programming |
|
|
Electronic lock |
6 position lock | |
| Interface |
USB, PS/2 |
|
|

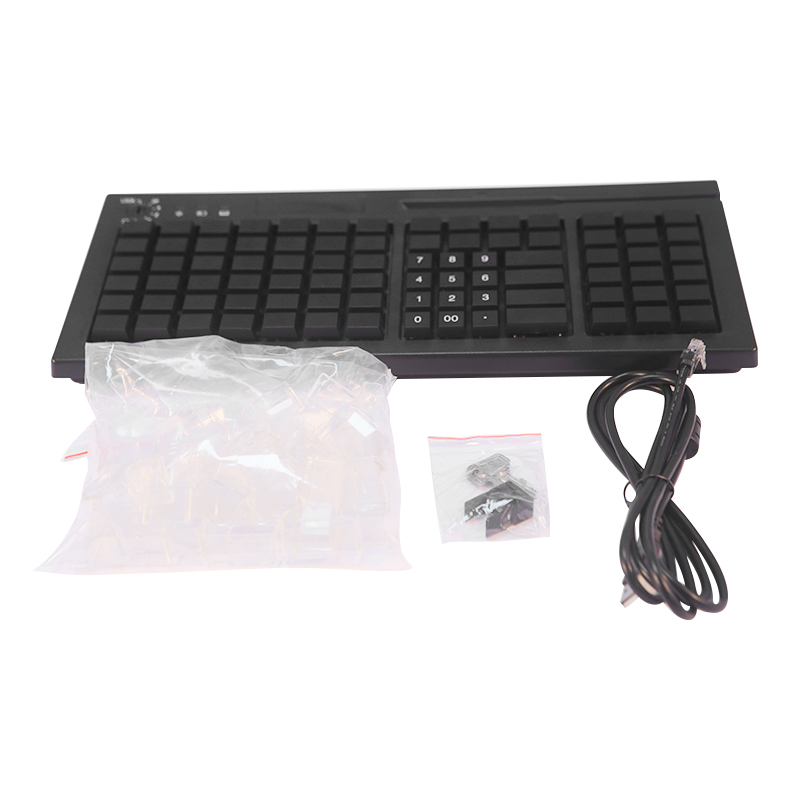

Accessories |
USB or PS/2 cable 1’; Keycaps & lens 1 Bag ( 72 pcs 1.33 times key lens ); |
|
| Cable Length |
1.8M for USB; 2.5M for PS/2 |
|

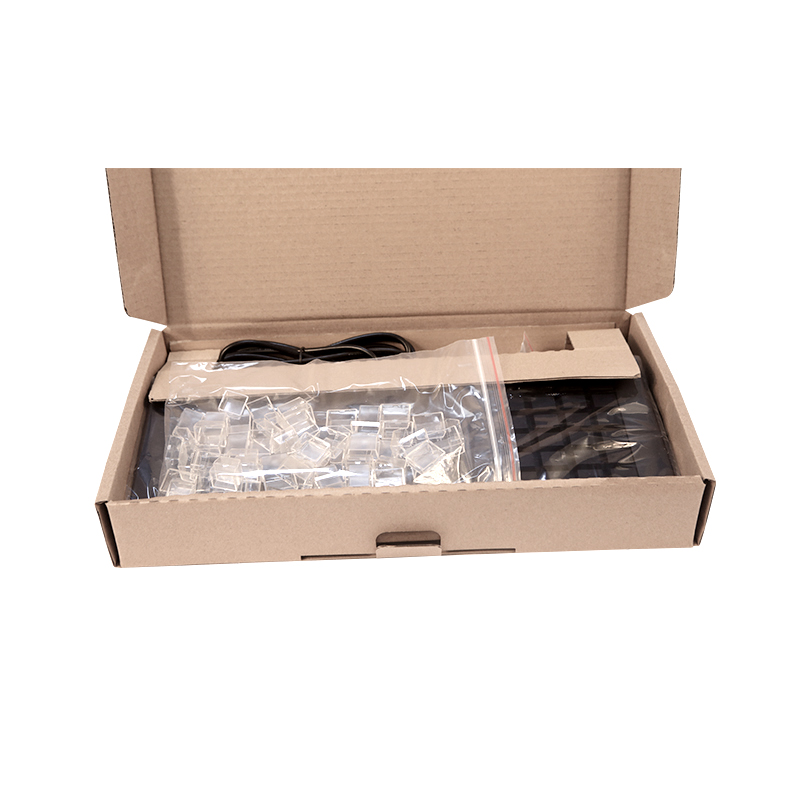

| Packing |
PP Bag+ Foam Cushion +Keycaps & lens bag + Inner Box |
|
