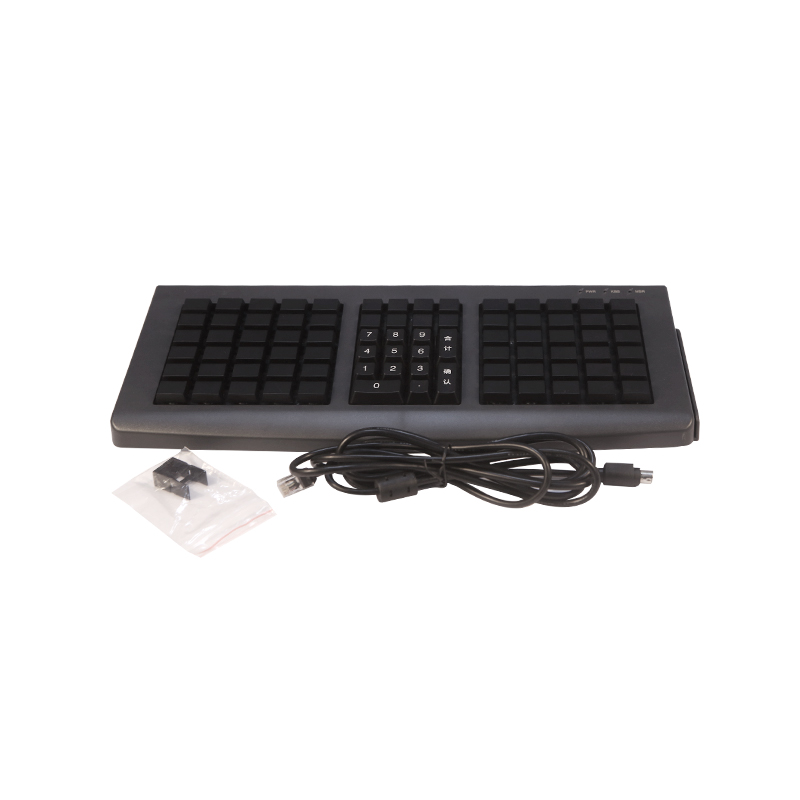

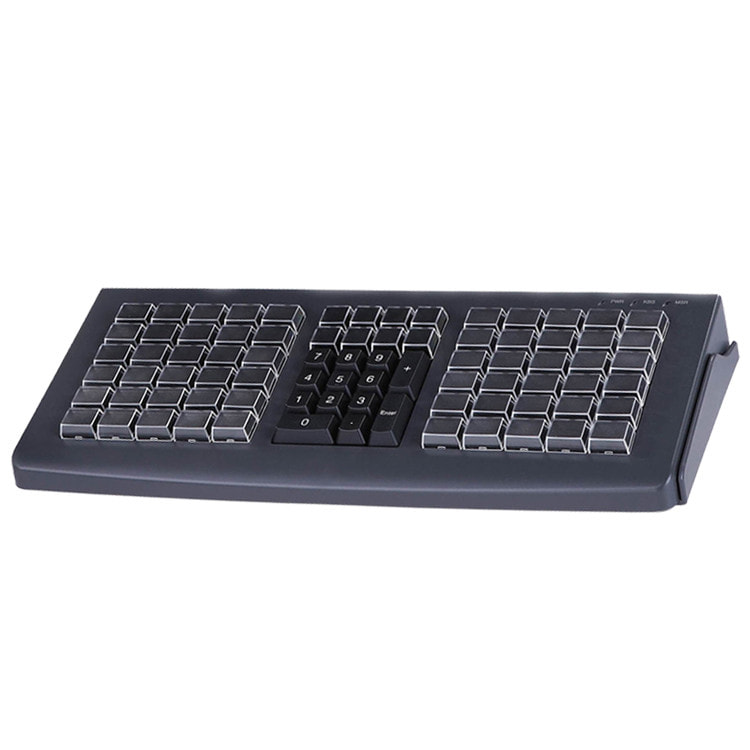

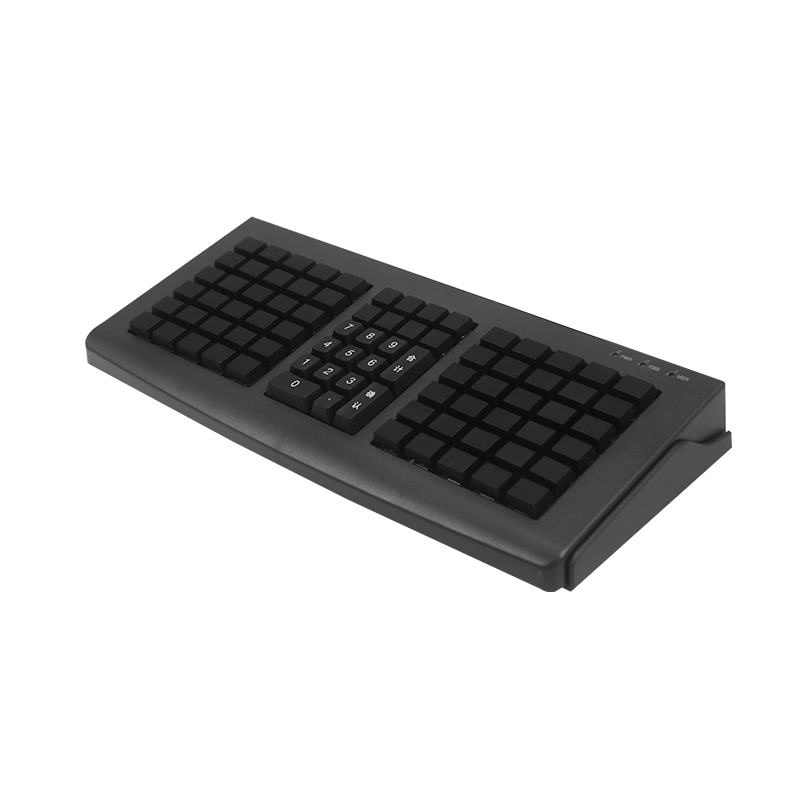

KB81M Keyboard
- POS keyboard 81 programmable keys
- 81 fully programmable keys, 6*14 matrix with numeric zone
- 1.33 times bigger keys , More convenient to cashier
- All keys are made from membrane with Independent push rod structure, good tactile feelings

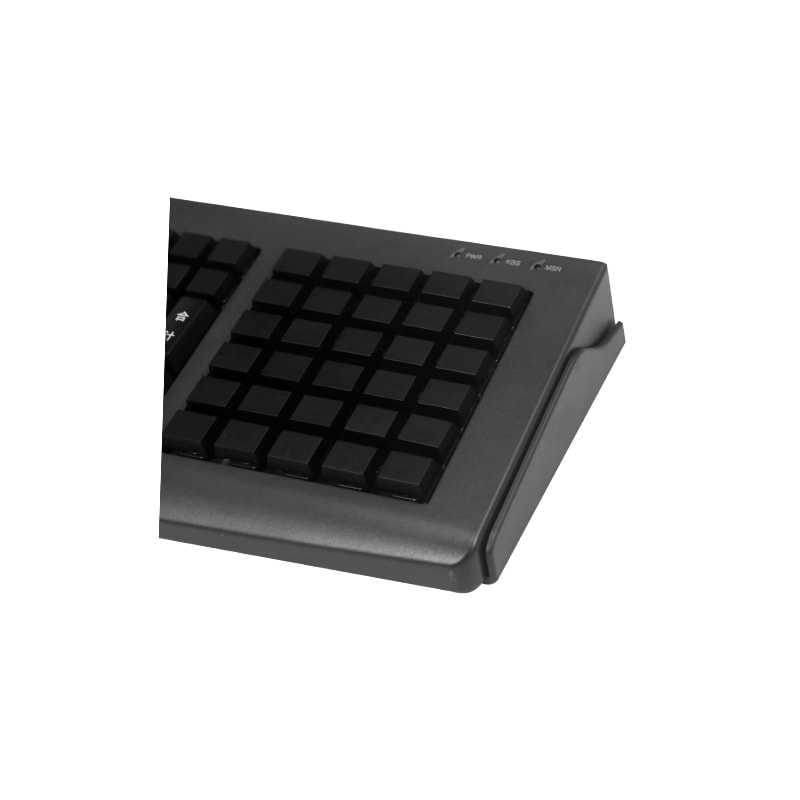

- MSR device that reads quickly and accurately
- Provide basic uni-mapper’s software
- Magstripe reader settings are programmable by Matrix Maker
- Programmable functions are powered by the Matrix Maker
- Support OPOS, JPOS for option
- With internal strong metal plate to enhance the protection against ESD is increased

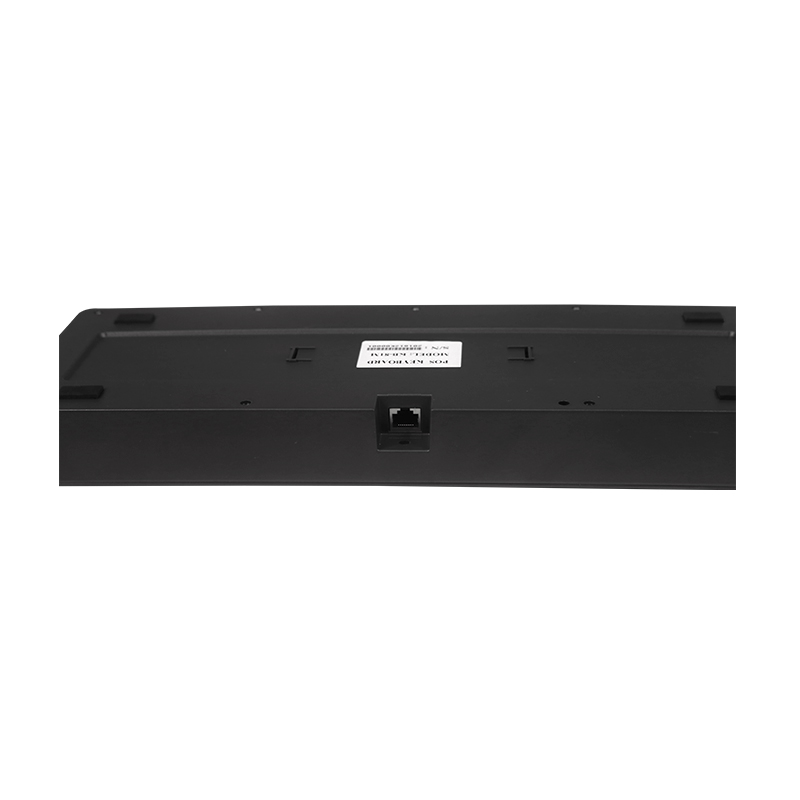

- Detachable cable, using the tough RJ45 connector
- Available in USB and PS/2 interface
- Manufacture by our own technology, “Made in China”

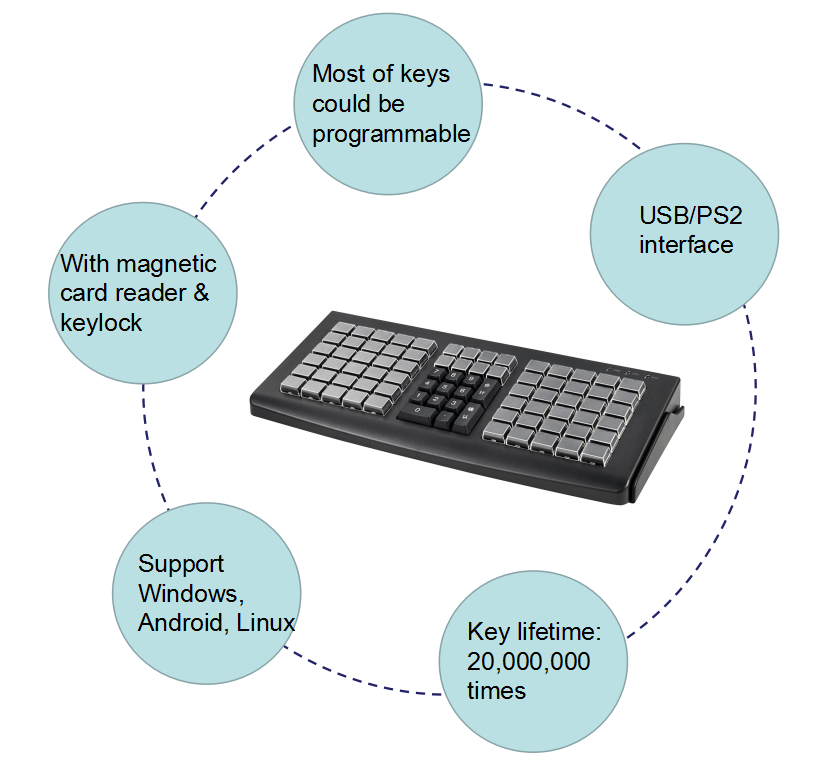

Features
- 81 fully programmable keys, 6*14matrix with numeric zone
- All keys are made from membrane with Independent push rod structure, good tactile feelings
- Magstripe reader settings are programmable by Matrix Maker
- Programmable functions are powered by the Matrix Maker
- With internal strong metal plate to enhance the protection against ESD is increased
- Different keycaps (1 fold, 2 fold and 4 fold) are available
- Numeric profile keycaps are available
- Detachable cable, using the tough RJ45 connector
- Available in USB and PS/2 interface
Specification
| Programmable Features |
| Powered by Matrix Maker, our programmable software running under Win7, Win8, Win10 and Win11 |
| With optional Android based programming app |
| Support OPOS, JavaPOS |
| All keys can be programmed with unlimited characters |
| All data can be retained for no less than 100 years without additional battery |
| Does not require a TSR program and hence avoids application software crashes |
| Supports multi-layer programming |
| Provides for a variable time delay of up to 255 seconds in each programmed string |
| Provides true keyboard wedge function that operates with or without the normal computer keyboard connected |
| Provide a true Caps/Scroll/Numeric Lock function independent of any other keyboards being connected |
| MagStripe Card Reader Features |
| Comply with ISO 7812, IBM standards, AAMVA, JIS-2 |
| Support multi-country code settings |
| Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence |
| Track 1: 210BPI with max 76 characters |
| Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters |
| Track 3: 210BPI with max 107 characters |
| Card swipe speed: 10 to 100 cm/s; Speed:3-125 ips at 75 BPI; 3-50 ips at 210 BPI |
| 500,000 swipe cycles |
| Keylock Features |
| 6 steps keylock |
| Each step can be programmed as a normal key or layer key |
| Life cycle >= 25,000 times |
| With clear step rotation |
| Technical Data |
| [Electronics] |
| Power supply: DC+5V ±10% |
| Current input: <150mA |
| [Mechanical] |
| Total travel: 4 – 0.4mm |
| Pre-travel: 2 ± 0.6mm |
| Peak load before make: 60 ± 20cN |
| [Others] |
| Storage temperature: -40°C to +55°C |
| Operating temperature: 0°C to +40°C |
| Operating humidity: 40% to 90% |
| Dimensions: 390mm(L) x 155mm(W) x 42mm(H) |
| Certificates: FCC/CE |
E-Brochure
|
Number of keys |
81 keys | |
| Color |
Black |
|
|
Dimensions |
Keyboard | 390mm(L) x 155mm(W) x 42mm(H) |
|
Inner Box |
421mm(L) x 221mm(W) x 62mm(H) |
|
| Out Carton |
460mm(L) x 330mm(W) x 440mm(H)/10PCS/14KG |
|
|
Unit Weight |
1005/1250g(with accessories) | |
|
Key switch mechanism |
Membrane Switch |
|
| Keystroke resource |
10 million clicks |
|
|
Key stroke height |
4mm±0.5mm | |
| Programmable keys |
81 keys |
|
|
Relabeled keys |
81 keys | |
| Number Keys Area |
Yes,(Ergonomic keycap) |
|
|
Magstripe Card Reader |
1/2/3 tracks; Optional ; ≥50 0000 times swipe cycles | |
| Multilevel programming |
Support 15 layers of programming |
|
|
Electronic lock |
6 position lock | |
| Interface |
USB, PS/2 |
|
|

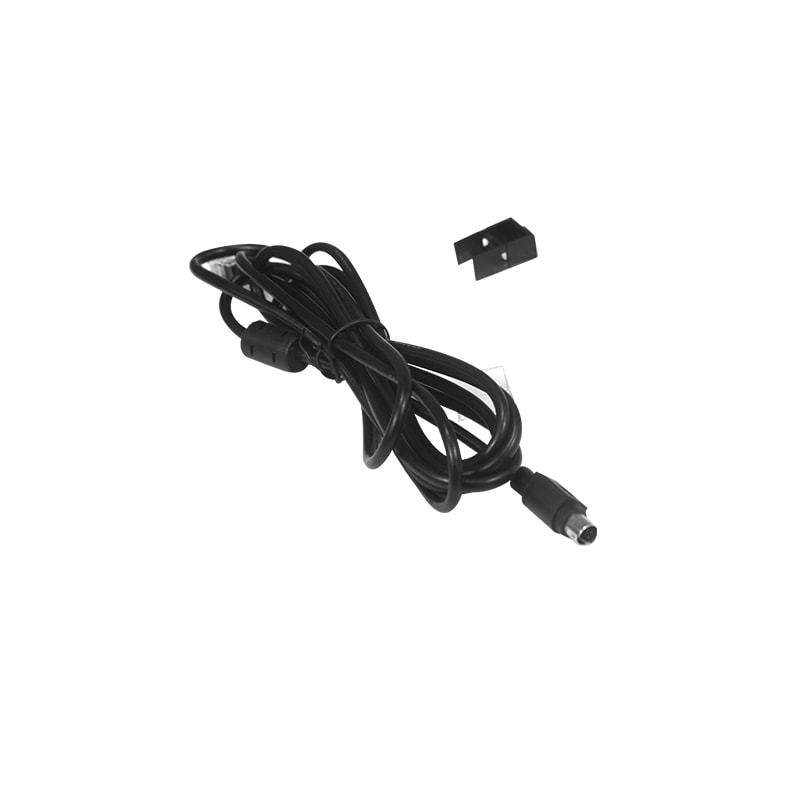

Accessories |
USB or PS/2 cable1’; Keycaps & lens 1 Bag ( 68 pcs 1.5 times key lens ); |
|
| Cable Length |
1.8M for USB; 2.5M for PS/2 |
|
| Packing |
PP Bag+ Foam Cushion +Keycaps & lens bag + Inner Box |
|
