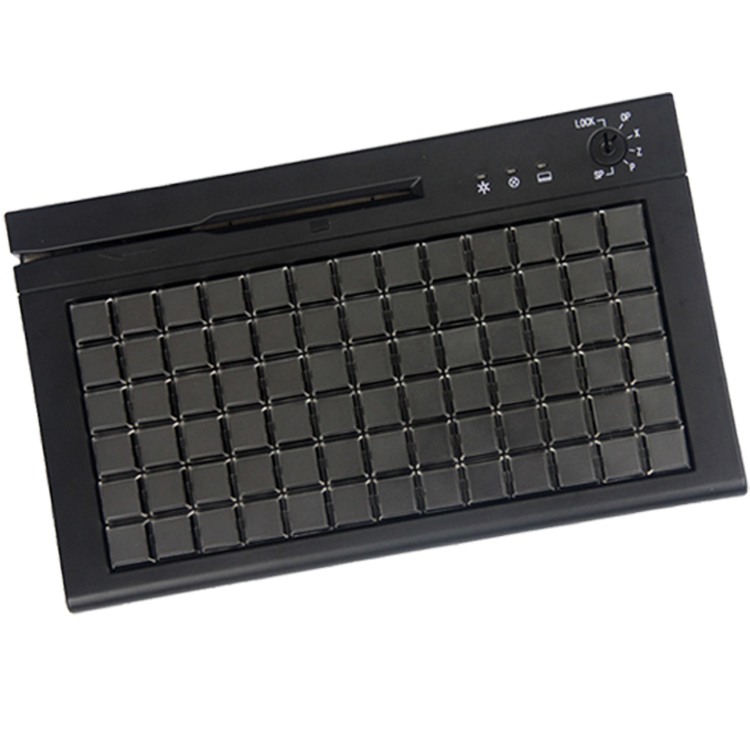

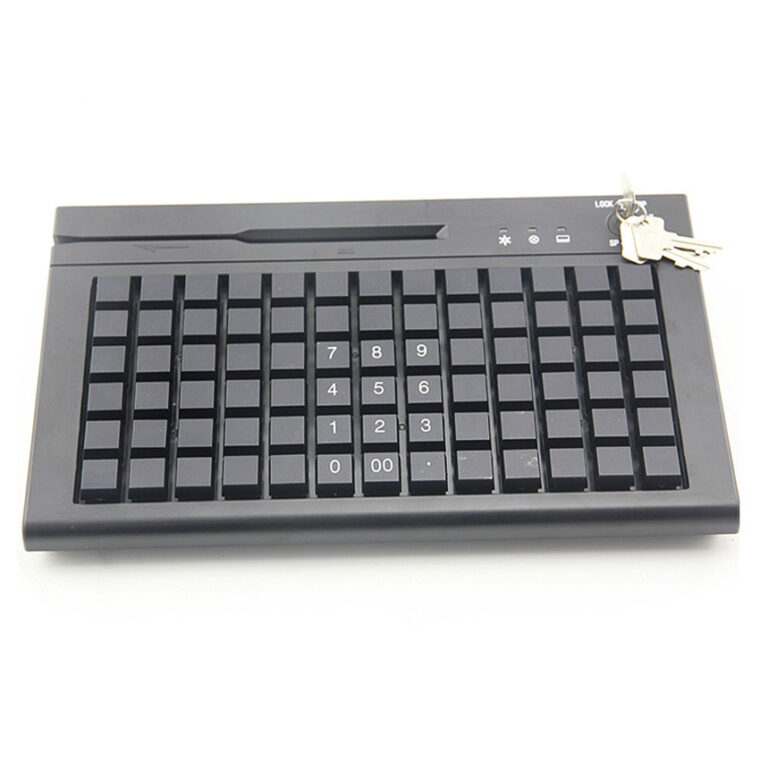

KB78 Keyboard
- POS keyboard 78 programmable keys
- MSR device that reads quickly and accurately
- Provide basic uni-mapper’s software
- Support OPOS, JPOS for option
- Support USB or PS/2 interface
- Manufacture by our own technology, “Made in China”
Features
- Reliable solution that can work 24/7,
- Low initial and further operating costs,
- Saving work space,
- A universal keyboard designed to perform a wide range of cash transactions,
- Universal USB+PS/2 cable for connecting to a computer – no need to buy an additional cable,
- Compatibility with most modern OS, such as WinXP/7/POSReady2009/7, DOS, Linux and others, as well as popular cash register software,
- Modern user-friendly interface software for keyboard programming and magnetic card reader settings,
- Reliable key travel mechanism, long durability,
- Protection against static electricity due to the presence of a metal plate built into the base,
- The ability to connect a service Windows keyboard if you need to quickly configure it.
Specification
|
Number of keys |
78 keys | |
|
Color |
Black & Grey White |
|
| Dimensions |
Keyboard |
290mm(L) x 173.5mm(W) x 45mm(H) |
|
Inner Box |
385mm(L) x 220mm(W) x 60mm(H) |
|
|
Out Carton |
403mm(L) x 338mm(W) x 465mm(H)/10PCS/13.5KG |
|
|
Unit Weight |
1.0 kg | |
|

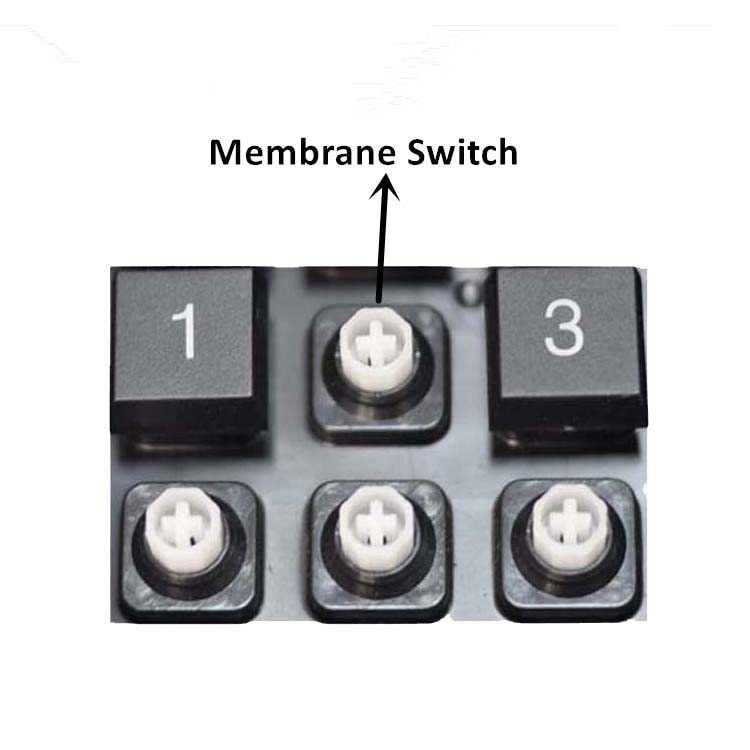

Key switch mechanism |
Membrane keyboard |
|
| Keystroke resource |
10 million clicks |
|
|
Key stroke height |
4mm±0.5mm | |
| Programmable keys |
78 keys |
|
|
Relabeled keys |
78 keys | |
|
Number Keys Area |
Yes, Normal Programmable Keycaps | |
|
Magstripe Card Reader |
1/2/3 tracks; Optional ; ≥50 0000 times swipe cycles |
|
| Multilevel programming |
Support 15 layers of programming |
|
|
Electronic lock |
6 position lock |
|
| Interface |
USB, PS/2 |
|
|
Accessories |
USB or PS/2 cable1’; Keycaps&lens 1 Box ( 66 single lens, 5 sets 1*2 fold keycaps&lens, 1set 2*2 fold keycaps &lens); key click 1’; Keys 1 set (4pcs for different managing level) |
|
|
Cable Length |
1.8M for USB; 2.5M for PS/2 | |
| Packing |
PP Bag+ Foam Cushion+Keycaps&lens Small box + Inner Box |
|
E-Brochure
| Programmable Features |
| Powered by Matrix Maker, our programmable software running under Win7, Win8, Win10 and Win11 |
| With optional Android based programming app |
| Support OPOS, JavaPOS |
| All keys can be programmed with unlimited characters |
| All data can be retained for no less than 100 years without additional battery |
| Does not require a TSR program and hence avoids application software crashes |
| Supports multi-layer programming |
| Provides for a variable time delay of up to 255 seconds in each programmed string |
| Provides true keyboard wedge function that operates with or without the normal computer keyboard connected |
| Provide a true Caps/Scroll/Numeric Lock function independent of any other keyboards being connected |
| MagStripe Card Reader Features |
| Comply with ISO 7812, IBM standards, AAMVA, JIS-2 |
| Support multi-country code settings |
| Support programmable MSR setting for the header, tailor, separator, suffix and prefix, track sequence |
| Track 1: 210BPI with max 76 characters |
| Track 2: 210BPI with max 107 characters or 75BPI with max 37 characters |
| Track 3: 210BPI with max 107 characters |
| Card swipe speed: 10 to 100 cm/s; Speed:3-125 ips at 75 BPI; 3-50 ips at 210 BPI |
| 500,000 swipe cycles |
| Keylock Features |
| 6 steps keylock |
| Each step can be programmed as a normal key or layer key |
| Life cycle >= 25,000 times |
| With clear step rotation |
| Technical Data |
| [Electronics] |
| Power supply: DC+5V ±10% |
| Current input: <150mA |
| [Mechanical] |
| Total travel: 4 – 0.4mm |
| Pre-travel: 2 ± 0.6mm |
| Peak load before make: 60 ± 20cN |
| [Others] |
| Storage temperature: -40°C to +55°C |
| Operating temperature: 0°C to +40°C |
| Operating humidity: 40% to 90% |
| Certificates: FCC/CE |
