KB40 Serials

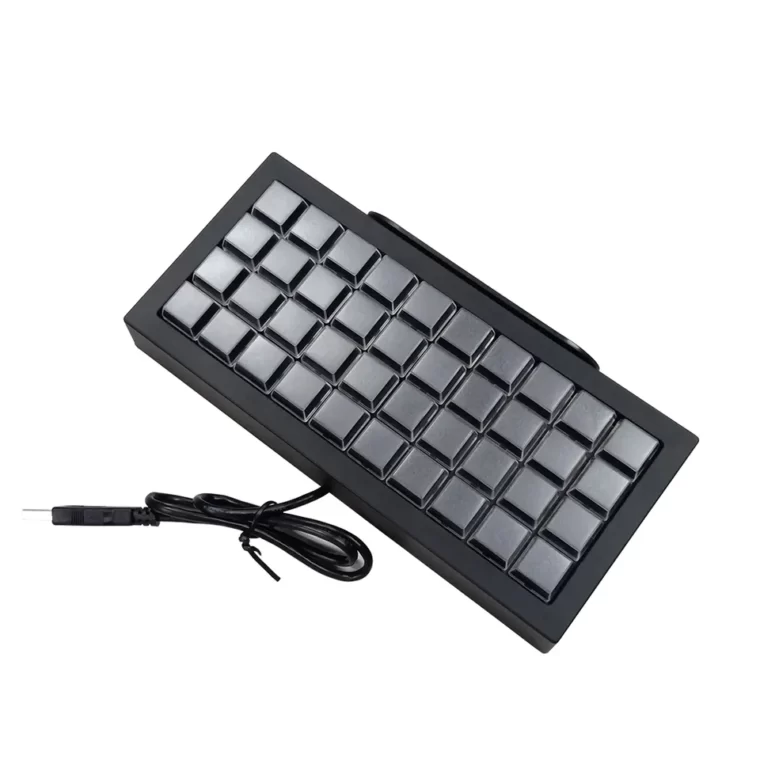

LIFPOS KB40 Series features 40 fully programmable keys. Designed for use in retail, the KB40 Series is compact but durable enough to meet the demanding requirements of busy retail outlets. The KB40 Series offers an optional MSR to facilitate a variety of card reading solutions and provide a single integrated, easy to use solution on the counter top which helps manage the space available to the retailer.
Features
- POS Keyboard 40 Programmable Keys
- Membrane type or Cherry type
- 1/2/3 tracks stripe card reader is optional
- Desktop version or side hanging type( Easy to install with monitor bracket)
- Provide basic Uni-Mapper’s software
- Manufacture by our own technology, “Made in China”
- Provide the best Customer Service rapidly
Specification
| INTERFACE | PS/2, USB | KEYSWITCH | Membrane Type/Cherry Type |
| POWER SUPPLY | DC 5Volt, Max 75mA | Key code | Download from our website (Provide uni mapper ) |
| SIZE | 99(L)X212(W)X32.53(H)mm without MSR
104.55(L)*212(W*35.53(H)mm with MSR |
KEY LIFE CYCLE |
10 million times (Membrane) 50 million times (Cherry) |
| TOTAL TRAVEL | 4.0±0.5mm | KEY LAYOUT | 40Key |
| PEAK FORCE | 55±10g |
E-Brochure
| Physical Properties | |
| Main Material | ABS |
| N.W | With MSR: 560g/PCS;12.5kg/CTN
Without MSR: 400g/PCS;9.5kg/CTN |
| Cable | 0.4M(Customized) |
| Electrical Specification | |
| Working Voltage | DC+5V ±10% |
| Working Current | ≤150mA |
| Insulation Resistance | >50MΩ |
| Contact Resistance | <1KΩ |
| Keyboard Feature | |
| Key | Cherry Mechanical switch / Membrane |
| Conductivity | 60±5gf |
| Initial Strength | 40gf |
| Total Stroke Strength | 60±5gf |
| Key Pressure | 55±10g |
| Pre-stroke | 2.0±0.3mm |
| Total Stroke | 4.0mm |
| Key Lifetime |
Cherry Mechanical switch: 50 million times Membrane: 10 million times; |
| Support Interface | USB |
| Operating System | DOS, Win9X, Me, Win2K,XP ,Win7,Win8,Win10, Win 11 |
| MSR Specification | |
| Accord to ISO7811 AAMVA,JIS/Ⅱ | |
| Swipe Speed | 10-120cm/s |
| Head Lifetime | ≥50 0000times |
| Coercivity Range | 300-4000 Oe |
| The Density of Magnetic Stripe | Track 1–210BPI with max 76 characters |
| Track 2–210BPI with max 104 characters or 75BPI with 37 characters | |
| Track 3–210BPI with max 104 characters | |
| Track | 1 or 2 or 3 track; 1,2track; 2,3track; 1,2,3track |
| Power Supply | DC+3.3V |
| Environmental Characteristics | |
| Working Temperature | 0±45℃ |
| Working Humidity | 10%– 90% |
| Storage Temperature | -20 ±50℃ |
| Atmosphere |
86-106kpa |
